STAR

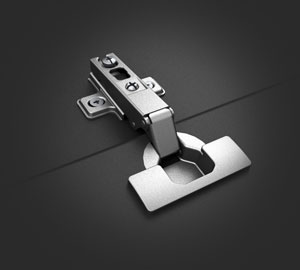

Star Hinge, the classical product of HK pro, is a slide on hinge model which provides easy opening of cabinet doors. Star Hinges, designed by considering different opening angles, have push-open reverse spring, push-open without spring and also mini versions for small and light doors. Star Hinge, which provides different solutions with its large product range, meets with customers for many years.

Product Contents

  Online Brochure

  Installation Information

  Application Examples

The Classic Hinge.

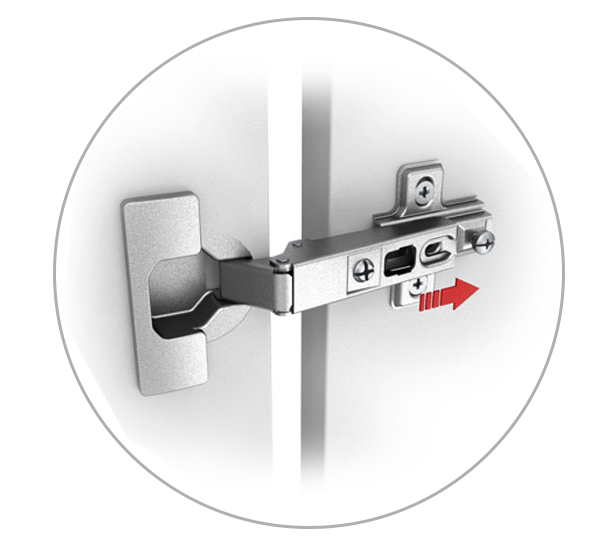

Easy Installation

HK pro developed Star Hinge in a way that ensures easy assembly-disassembly of hinge onto mounting plate feature just by using a screwdriver. It simplifies installation process during production.

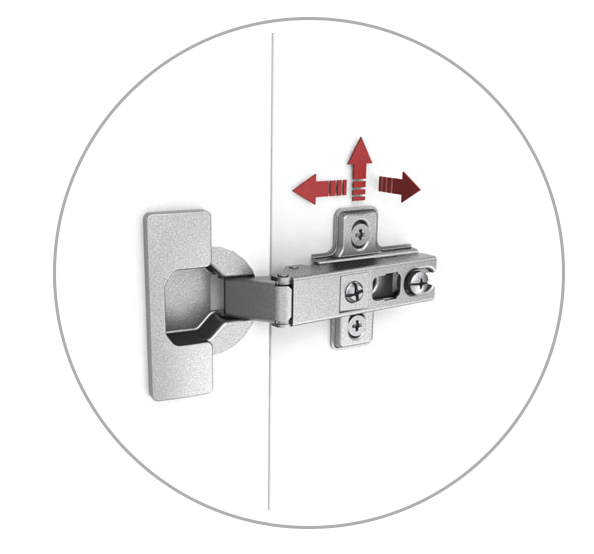

Adjustment

Star Hinge provides manual adjustment with screwdriver. Star Hinge, which provides different solutions to meet users’ needs, steps forward with its simple design, durability and long life structure.

Technical Specifications

• Opening Angle : 110˚
• Cup Diameter : 35 mm
• Cup Depth : 11,2 mm
• Hinge Body : Steel
• Hinge Cup : Steel
• Crank Type : 0-9-18 mm
• Finish : Nickel
• Depth Adj. : ±3 mm
• Packaging : 250 Pieces
