MULTI-MECH LIFT

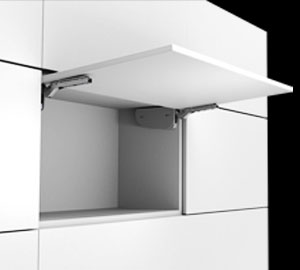

Soft and silent movement features of D-Lite Lift provide maximum comfort in lift-up cabinet doors. Cabinet doors can be stopped at a desired level by gradually opening feature. D- Lite Lift is designed and produced with the innovative perspective of Samet to cover minimum space in cabinet. Four standard colour options of D-Lite Lift complies with innovative furniture designs.
Product Contents
Online Brochure
Installation Information
Application Examples
Inspirational Silence

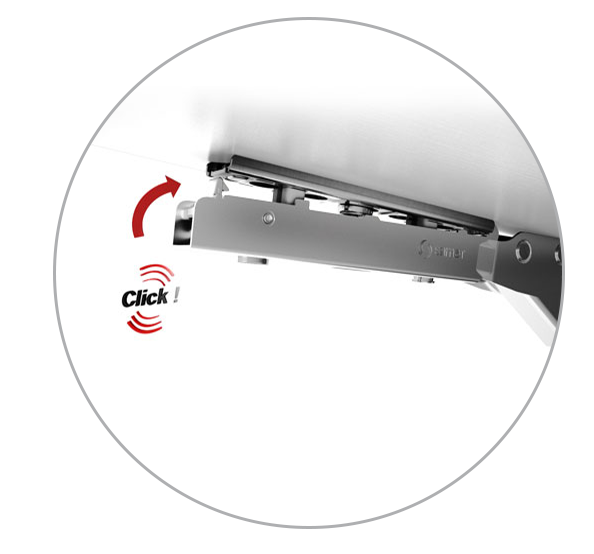

Easy Hingeless Assembly

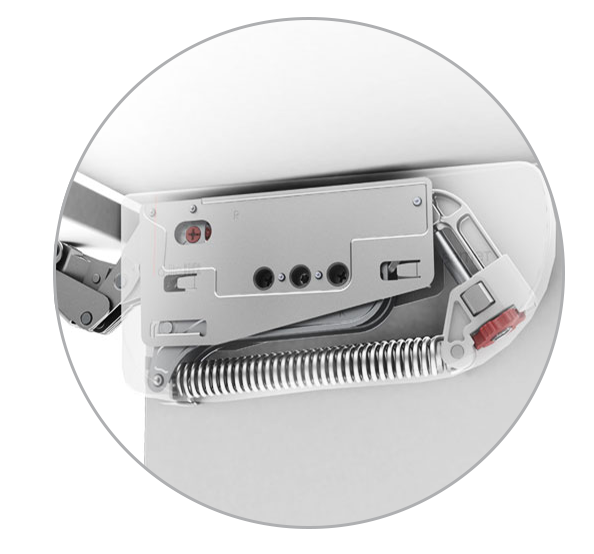

D-Lite Lift’s impeccably designed mechanic lifting structure provides lifetime stability. D-Lite Lift can be assembled easily and also doors can be mounted without using any tools by a special track mechanism.

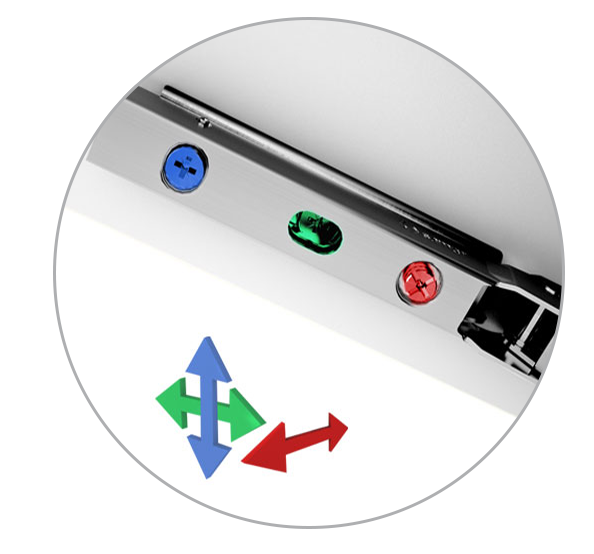

Adjustable for Different Requirements
D-Lite Lift’s 3 dimensional alignment mechanism which offers adjustment of up-down, left-right, back-forward for flawless installation. Lift-up force of mechanism can be adjusted according to door weight and height. There are 3 different D-Lite Lift mechanism alternatives for different door weights which provides sleek solutions to designers in wide range of door sizes.
Technical Specifications
- 27 mm mechanism thickness.
- 90 mm mechanism height.
- 198 mm mechanism length.
- 14 kg maximum loading capacity.
- Easy toolless assembly and disassembly with track mechanism.
- 107° and 90 ° opening angle options.
- Fully mechanic lifting mechanism
